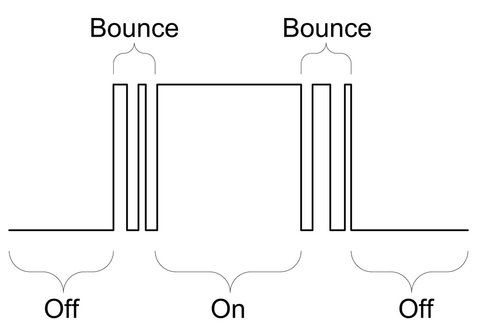

Debouncing a button is a common issue for the effective operation of a button. The physical imperfections of the button lead to voltage bounces when the button is pressed, resulting in a voltage signal that bounces just like the following figure:
I tackled this issue with Arduino some time ago (pomodoro timer with arduino (ita)), but recently I’ve started experimenting a bit with the ESP32 board and revisited the problem using this framework and programming language C++.
To get started with this board and become familiar with the APIs provided by the framework (esp-idf), I implemented a simple firmware that reads the state change of a button, turning a LED on and off.
Requirements
- esp-idf framework installed (Get started with esp32, I use VsCode with esp-idf extension)
- esp32 with usb cable
- Breadboard and some wires
- Led
- Resistor 220\(\Omega\)
- Button

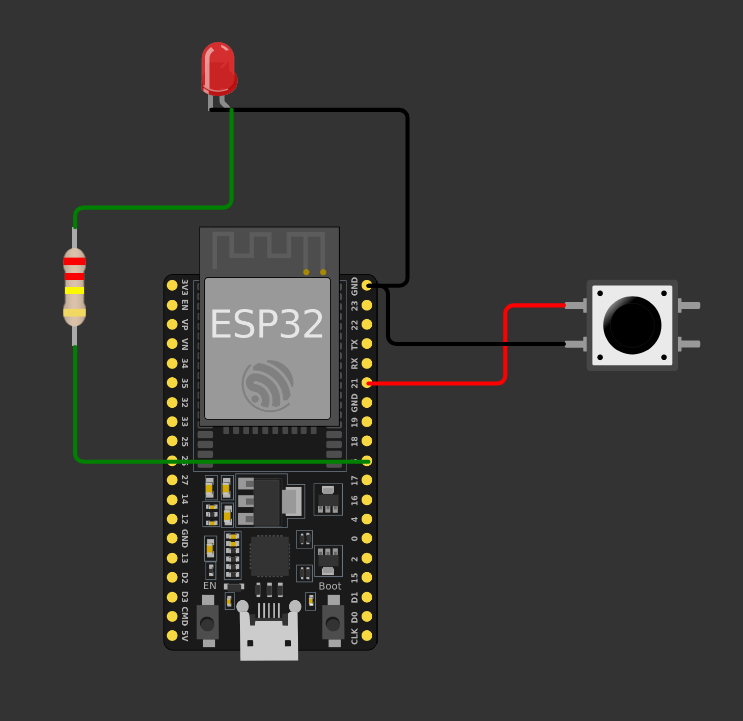

Schematics
Firmware Development
You can find my code in my repository, in the folder debouncing_button. Debouncing Button project
